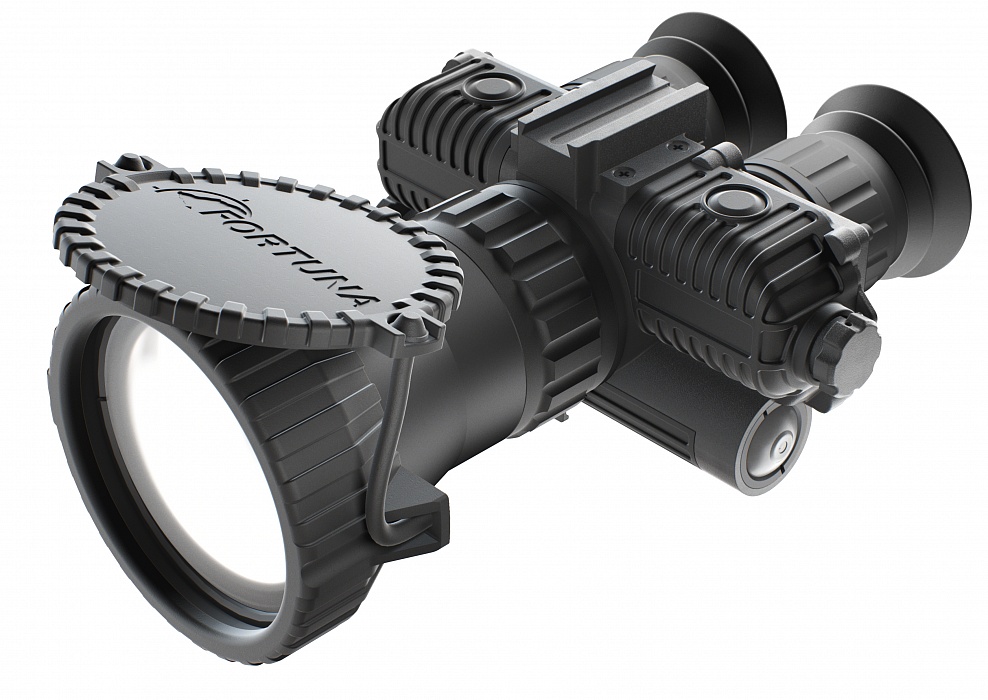

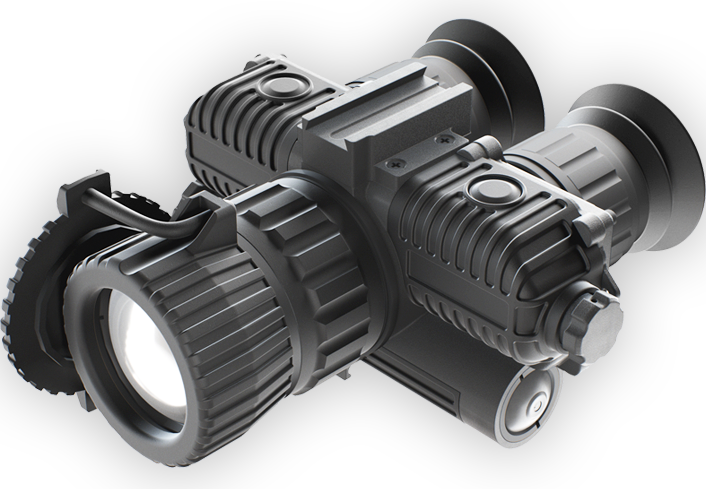

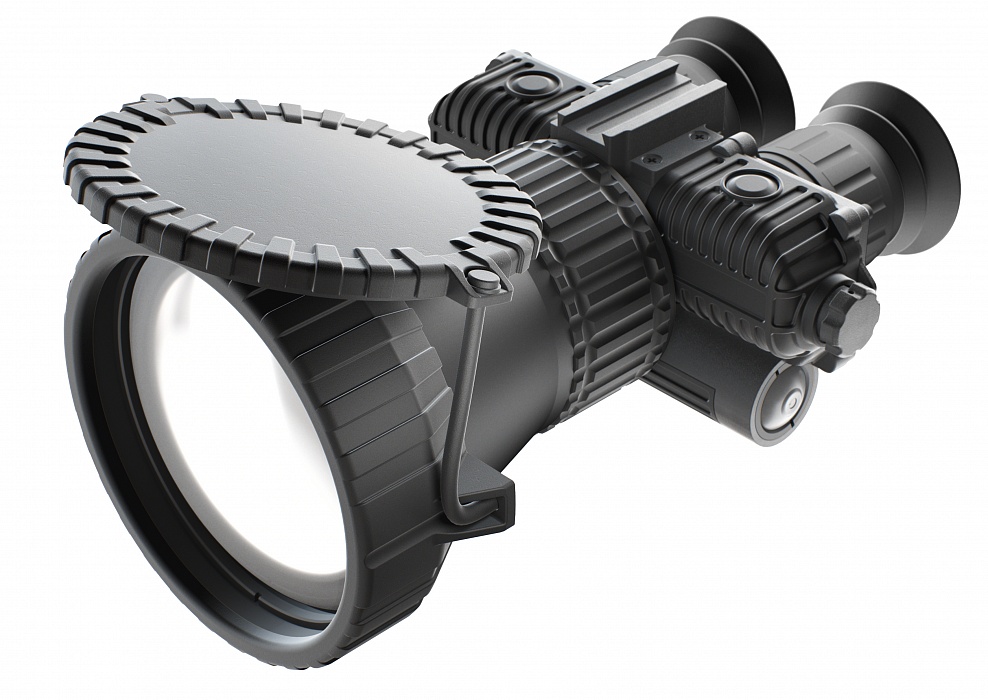

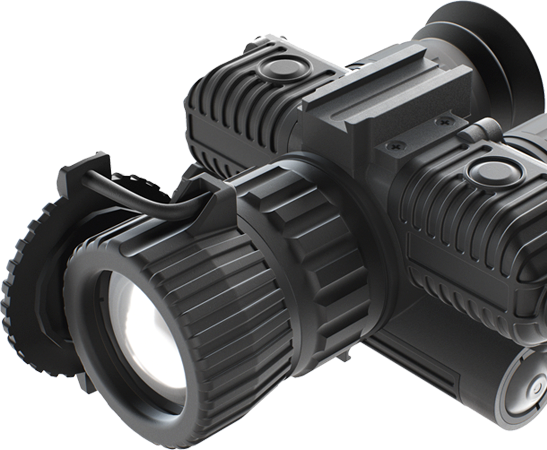

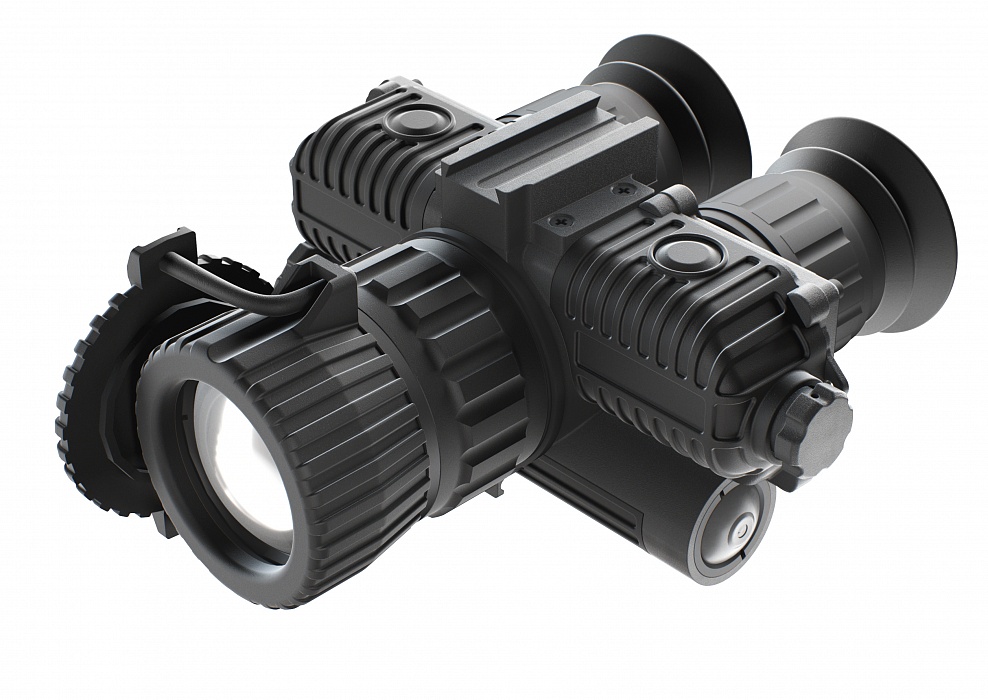

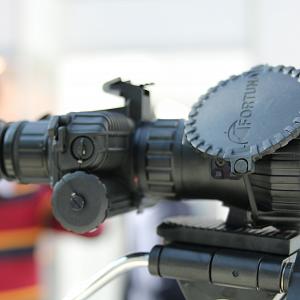

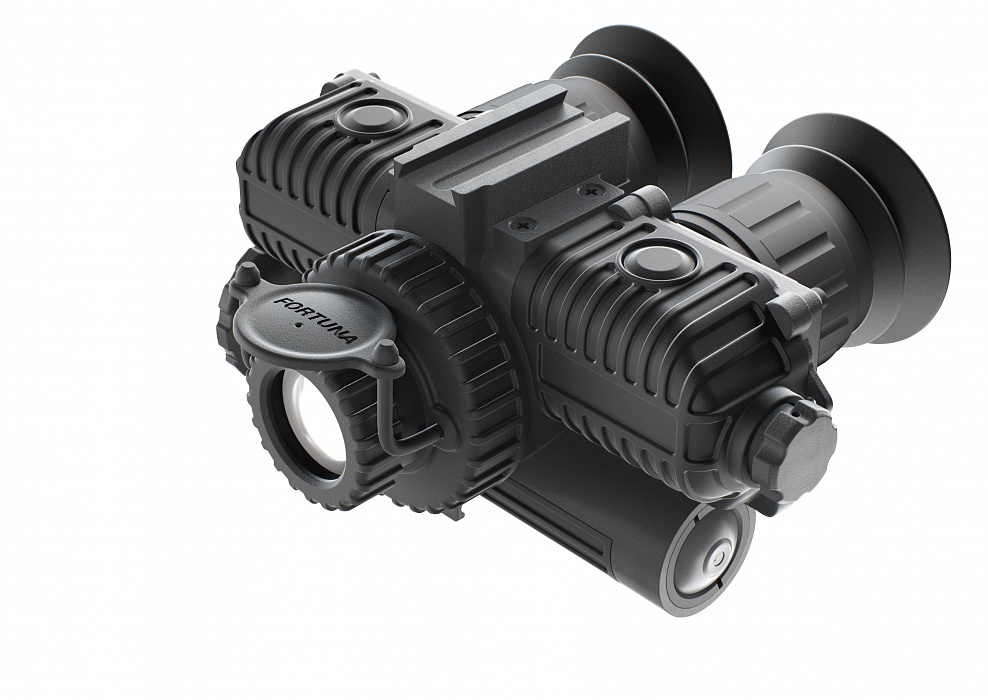

FORTUNA BINOCULAR

Thermal binoculars

Fortuna General Bino is a range of thermal binoculars for observing and/or tracking an object at different distances in terms of lack of daylight and in extreme weather conditions. The key feature of this series is the lenses bayonet mount which gives a wide range of possibilities to the user and allows you to quickly change the lens.

FEATURES

Encoder wheel fast-adjustable controls
Bayonet lens mount
Compatible with tactical helmets and head mounts

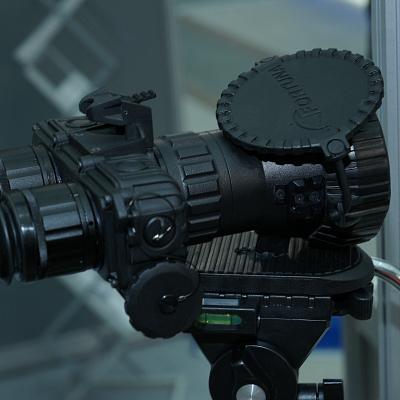

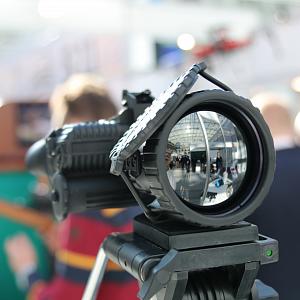

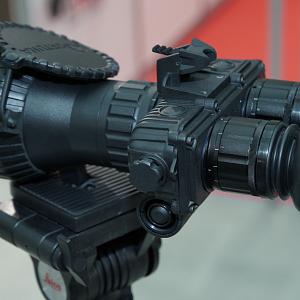

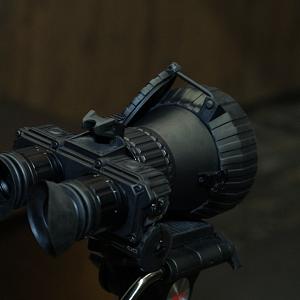

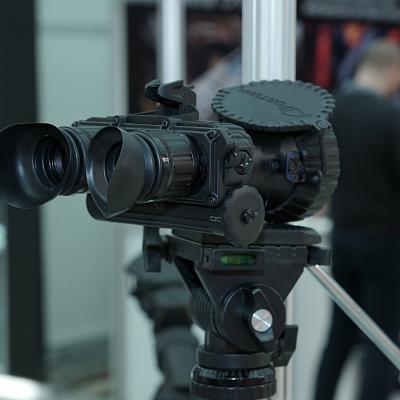

Tripod-mountable (with 75mm and 100mm lenses)
Dust and water resistant
Battery life up to 5 hours
Compatible with external power banks
Video output

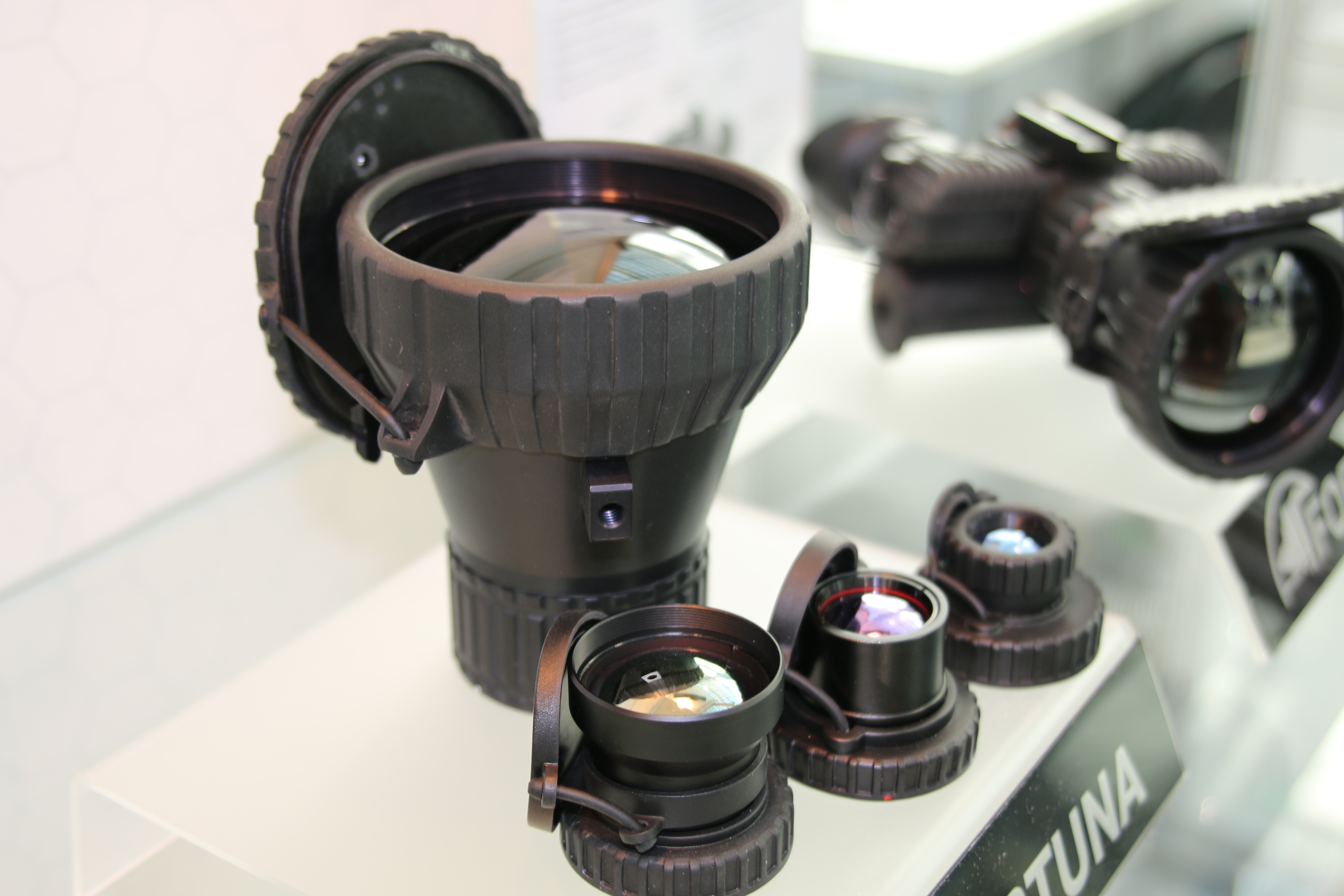

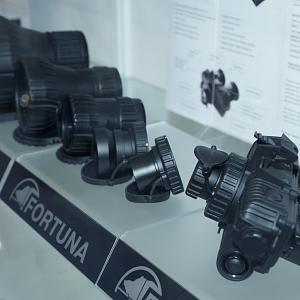

Four interchangeable lenses from 19 to 100 mm

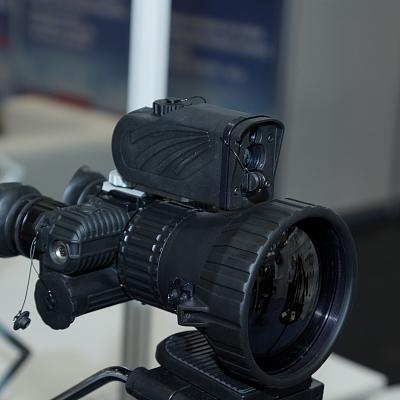

Compatible with Fortuna LRF laser rangefinder, with measurement results being viewed on the binocular’s display
Two-eye observation
Detection distance up to 3 km
Compact and light-weight

TECHNICAL SPECIFICATIONS

Model	19S3	50S3	75S3	100S3	19S6	50S6	75S6	100S6
Thermal imaging module	384x288, 17 μm				640x480, 17 μm
Spectral range, μm	7,5…14
Frequency, Hz	50 / 9				25 / 9
Sensitivity, mK	<50
Calibration	electronic, silent
Lens	19 mm, F/1,0	50 mm, F/1,2	75 mm, F/1,0	100 mm, F/1,0	19 mm, F/1,0	50 mm, F/1,2	75 mm, F/1.0	100 mm, F/1.0
Optical zoom	1,6	4,2	6,3	8,4	0,95	2,5	3,8	5,1
Field of View, deg	19,0 х 14,4	7,4 х 5,6	5,0 х 3,7	3,7 х 2,8	29,8 х 23,2	12,3 х 9,3	8,3 х 6,2	6,2 х 4,7
Lens focus	Manual, from 5m to ∞
Eye relief, mm	25
Dioptric adjustment	-5…+5
Display	AMOLED 800x600 x 2 pcs.
Power supply	Up to 8.5V (CR123A x 2 pcs.)
Minimal continuousrun time at 25°C, h	5
Protection class	IP66
Operating temperature range, °C	-30…+50
Dimensions, mm	155х95 x115	155х95x165	155х95x185	155х95x200	155х95 x115	155х95x165	155х95x185	155х95x200
Weight with batteries(CR123A x 2 pcs), g	~410	~650	~850	~1100	~410	~650	~850	~1100

BUY A FORTUNA THERMAL BINOCULAR

Model	Price, € (with no VAT)
BINOCULAR 19S3	Contact Us	Buy
BINOCULAR 50S3	Contact Us	Buy
BINOCULAR 75S3	Contact Us	Buy
BINOCULAR 100S3	Contact Us	Buy
BINOCULAR 19S6	Contact Us	Buy
BINOCULAR 50S6	Contact Us	Buy
BINOCULAR 75S6	Contact Us	Buy
BINOCULAR 100S6	Contact Us	Buy
FORTUNA GENERAL BINOCULAR 3B (body with no lens)	Contact Us	Buy
FORTUNA GENERAL BINOCULAR 6B (body with no lens)	Contact Us	Buy
FORTUNA 19mm thermal lens	Contact Us	Buy
FORTUNA 50mm thermal lens	Contact Us	Buy
FORTUNA 75mm thermal lens	Contact Us	Buy
FORTUNA 100mm thermal lens	Contact Us	Buy
