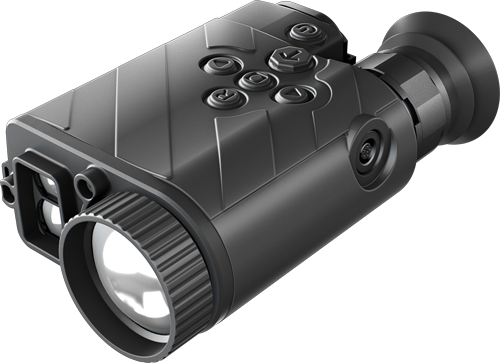

FORTUNA MONO

Thermal monoculars

Fortuna General Mono is a series of thermal monoculars with built-in laser rangefinder, video recording ability and wireless connection with a smartphone.

FEATURES

Intuitive symbolized menu
Light-weight, rubber-coated, IP67 sealed plastic body
52mm F/1.2 and 75mm F/1.0 lenses
Thermal cores 384х288 / 640х480, 17 μm
MicroSD video and photo recording
Electronic compass and biaxial gyroscope
Built-in 905nm laser rangefinder with single and scan modes
Wi-Fi connection with smartphones

TECHNICAL SPECIFICATIONS

Model	50M3	50M6	75M3	75M6
Thermal imaging core	384 x 288, 17 μm	640 х 480, 17 μm	384 x 288, 17 μm	640 х 480, 17 μm
Spectral range, μm	7,5…14
Frequency, Hz	50 / 9	25 / 9	50 / 9	25 / 9
Sensitivity, mK	<50
Calibration	electronic, silent
Lens	50 mm, F/1,2		75 mm, F/1,0
Optical zoom	4,2	2,5	6,6	4,0
Field of View, deg	7,4 х 5,6	12,3 х 9,3	5,0 х 3,7	8,3 х 6,2
Lens focus	From 5 m to ∞
Lens focus	25
Dioptric adjustment	-5...+5
Display	AMOLED 800 х 600
Power supply	18650 x 2 pcs.
Minimal continuous run time at 25° C	12 hours
Protection class	IP67
Operating temperature range	-30°…+50°
Dimensions, mm	55 х 100 х 175		91 х 131 х 227
Weight with batteries, g	890		1150
Built-in rangefinder
Wavelength	905
Accuracy	1 m
